High Quality MTP MPO Fiber Optic Patch Cord LC FC SC Connector
Product Overview

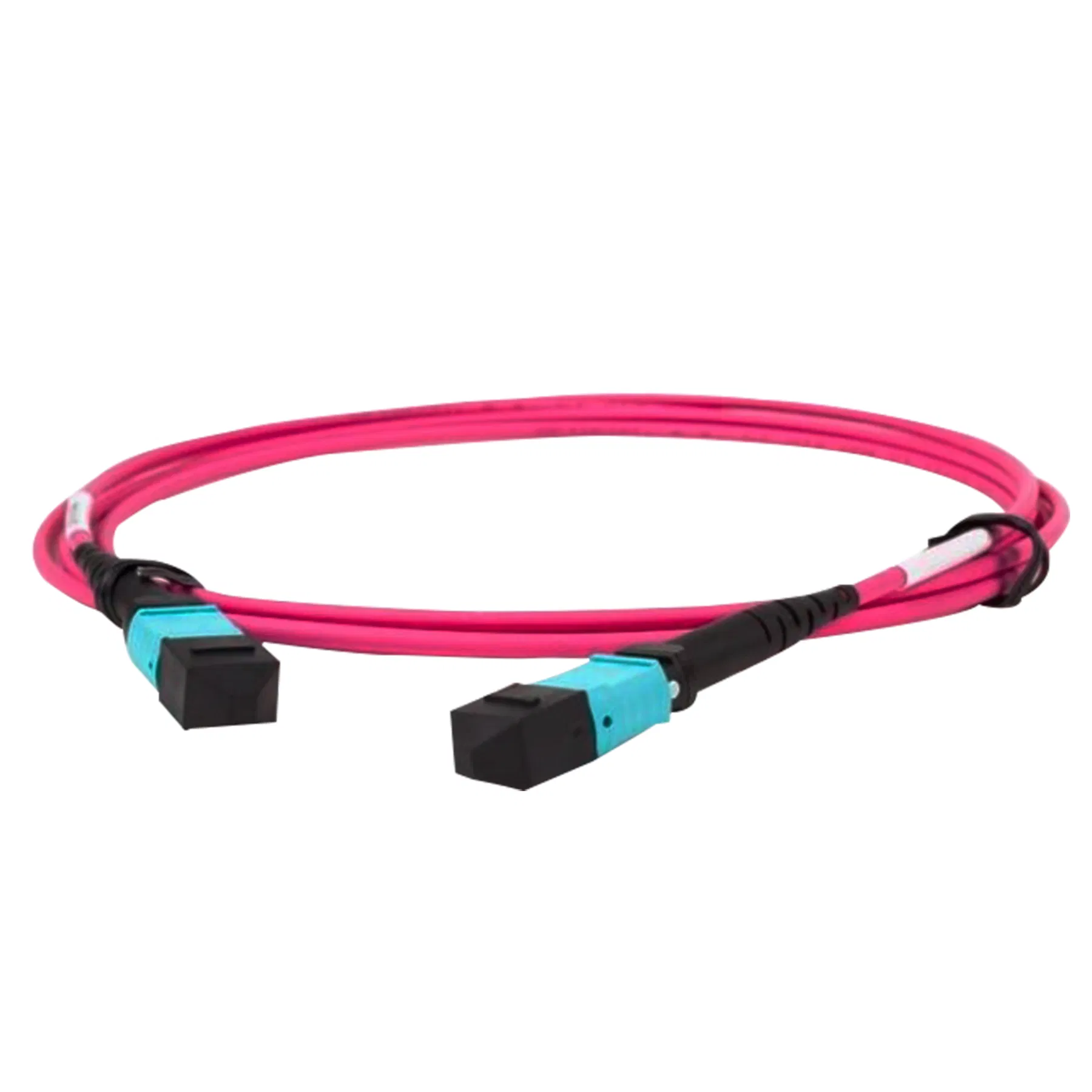

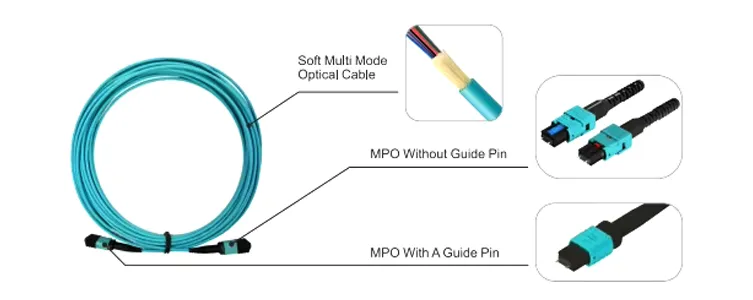

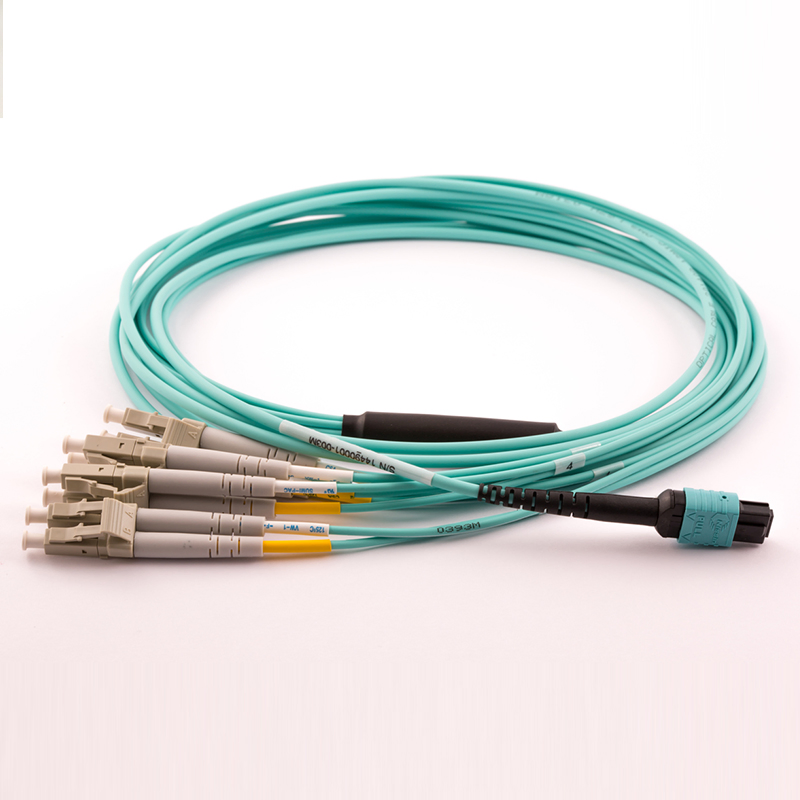

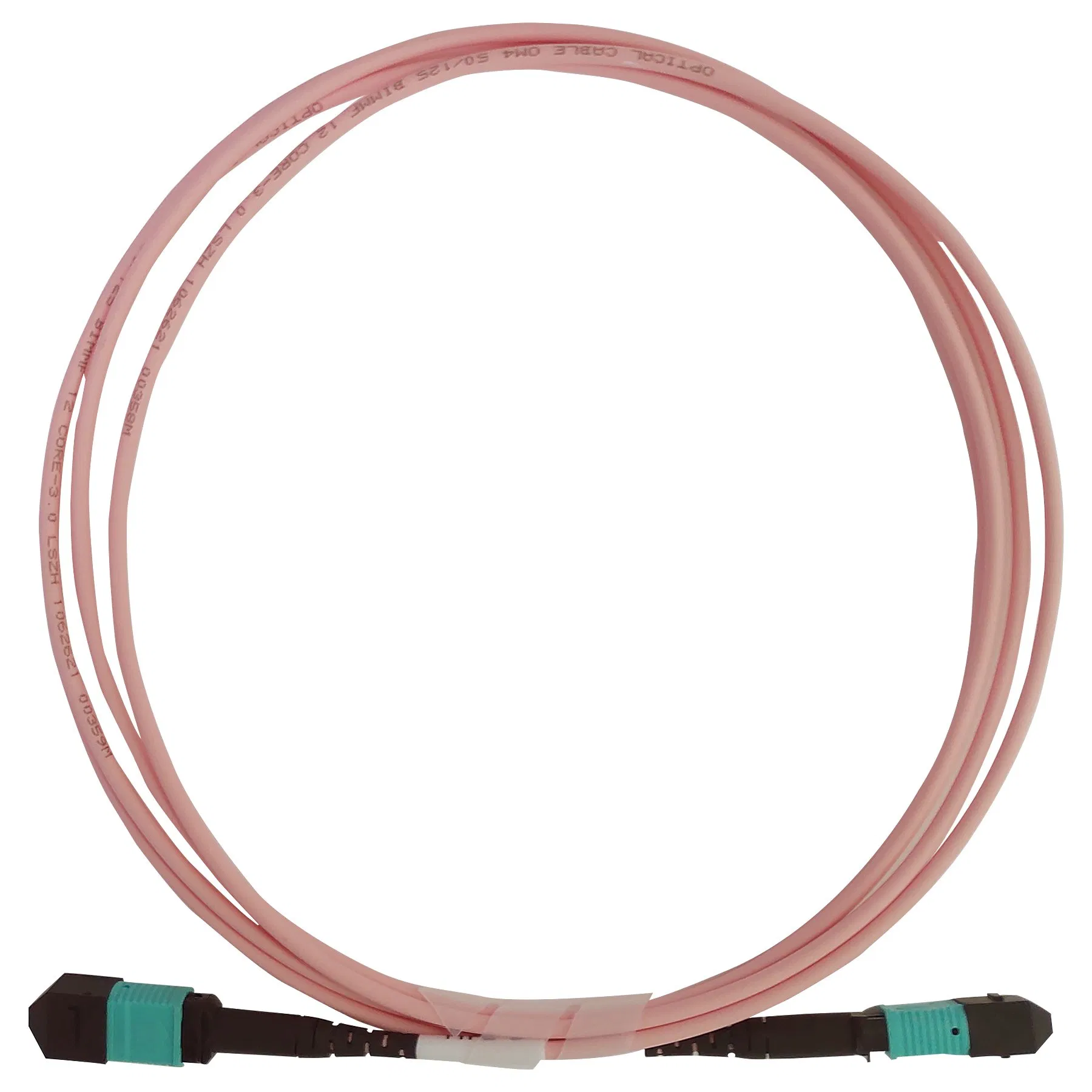

The High-Precision MPO/MTP to LC Breakout Fan-out Cable is designed for high-density applications requiring high performance and rapid installation. It allows for the transition from multi-fiber MPO connectors to individual discrete connectors (LC, SC, or FC). This cable is the primary link between high-speed 40G/100G MPO backbone trunks and 10G SFP+ or 25G SFP28 transceivers, providing a clean and organized patching solution.
Key Technical Features
- High-Density Migration: Converts a single 12-core MPO connector into 12 individual LC connectors, perfect for connecting MPO trunk cables to switches and servers.
- Low Insertion Loss: High-precision MPO ferrules and premium LC ceramic ferrules ensure typical insertion loss < 0.35dB for maximum signal strength.
- Staggered Fan-out Design: Carefully engineered breakout lengths (staggered or equal) to ensure neat cable management.
- OM3/OM4 Multimode Fiber: Optimized for 10Gbps and 25Gbps short-range high-speed data transmission.

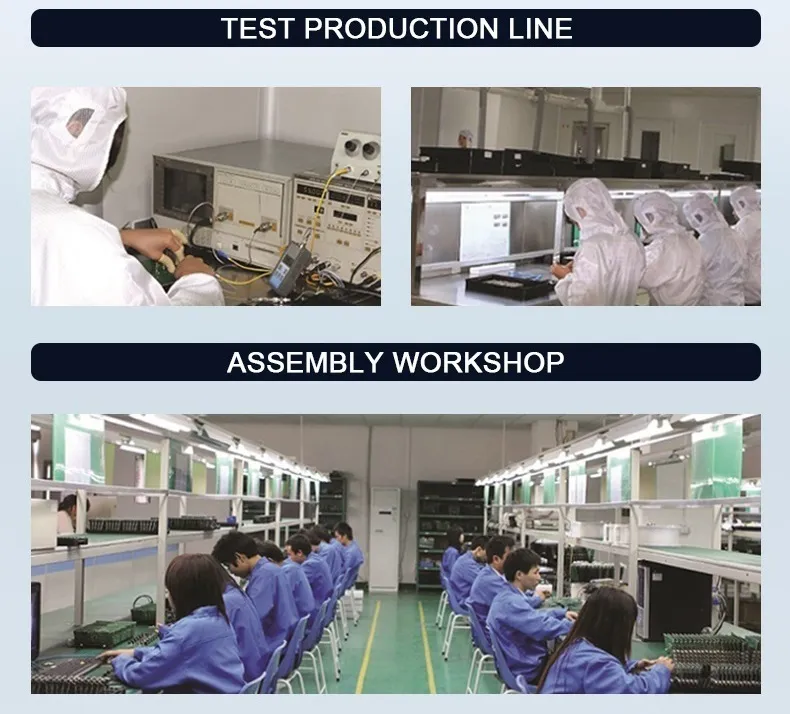

- 100% Factory Tested: Each assembly is inspected for end-face geometry and optically tested for IL and RL.
- LSZH Flame Retardant: Low Smoke Zero Halogen jacket ensures safety and compliance with international regulations.
Technical Specifications
Connector A
MPO / MTP (Female or Male)
Connector B
12 x LC / SC / FC
Fiber Mode
Multinode OM3 (Aqua) or OM4 (Magenta)
Core Count
12-Core (24-Core available)
Insertion Loss
Typical 0.25dB / Max 0.35dB
Why Choose This Solution?
- Customized "Tail" lengths to fit specific patch panel or switch density.
- Clear Port Labeling with numbered LC legs (1-12) for error-free installation.
- Advanced 3D interferometer testing for perfect physical contact.
- 3-year warranty with professional technical guidance.
Application Scenarios
- 40G to 10G Migration: Breaking down a 40G QSFP+ SR4 link into 4 x 10G SFP+ links.
- 100G to 25G Migration: Connecting a 100G QSFP28 SR4 port to 4 x 25G SFP28 ports.

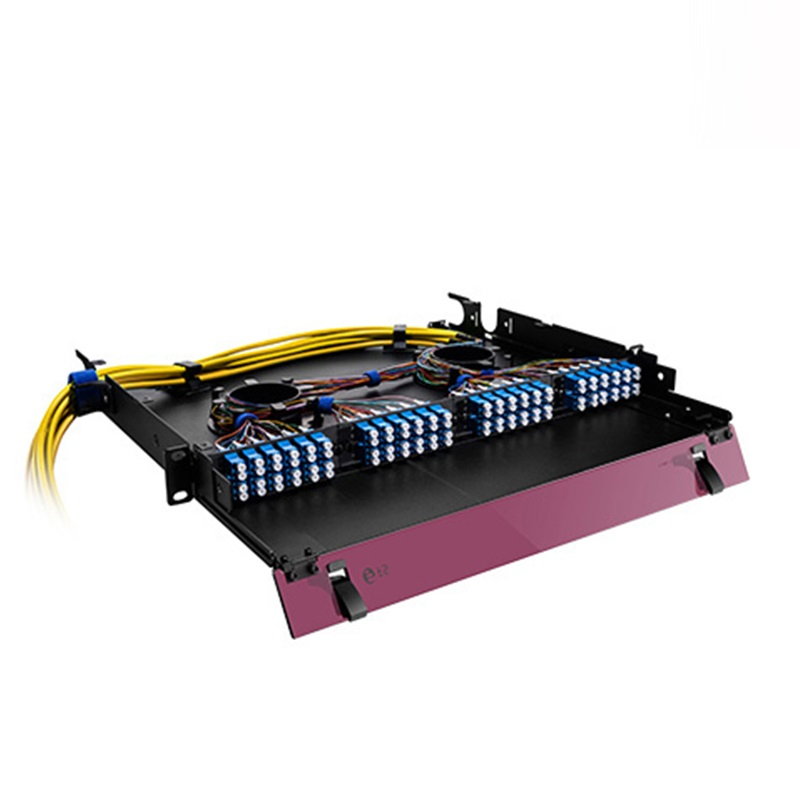

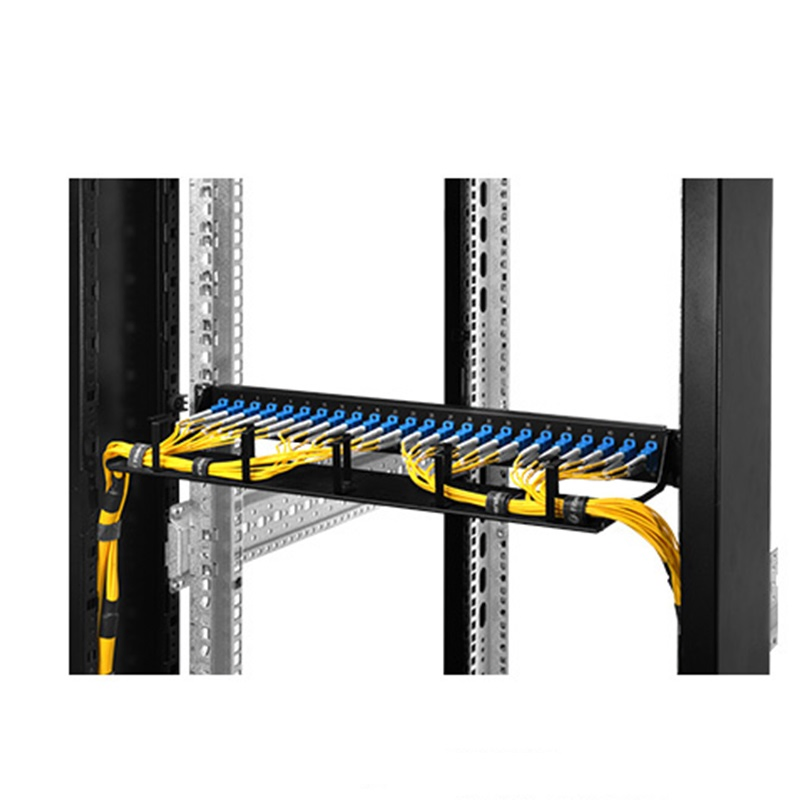

- High-Density Patching: Direct connection between MPO trunks and LC patch panels.
- Data room, Monitoring, Industrial health, and Education systems.
