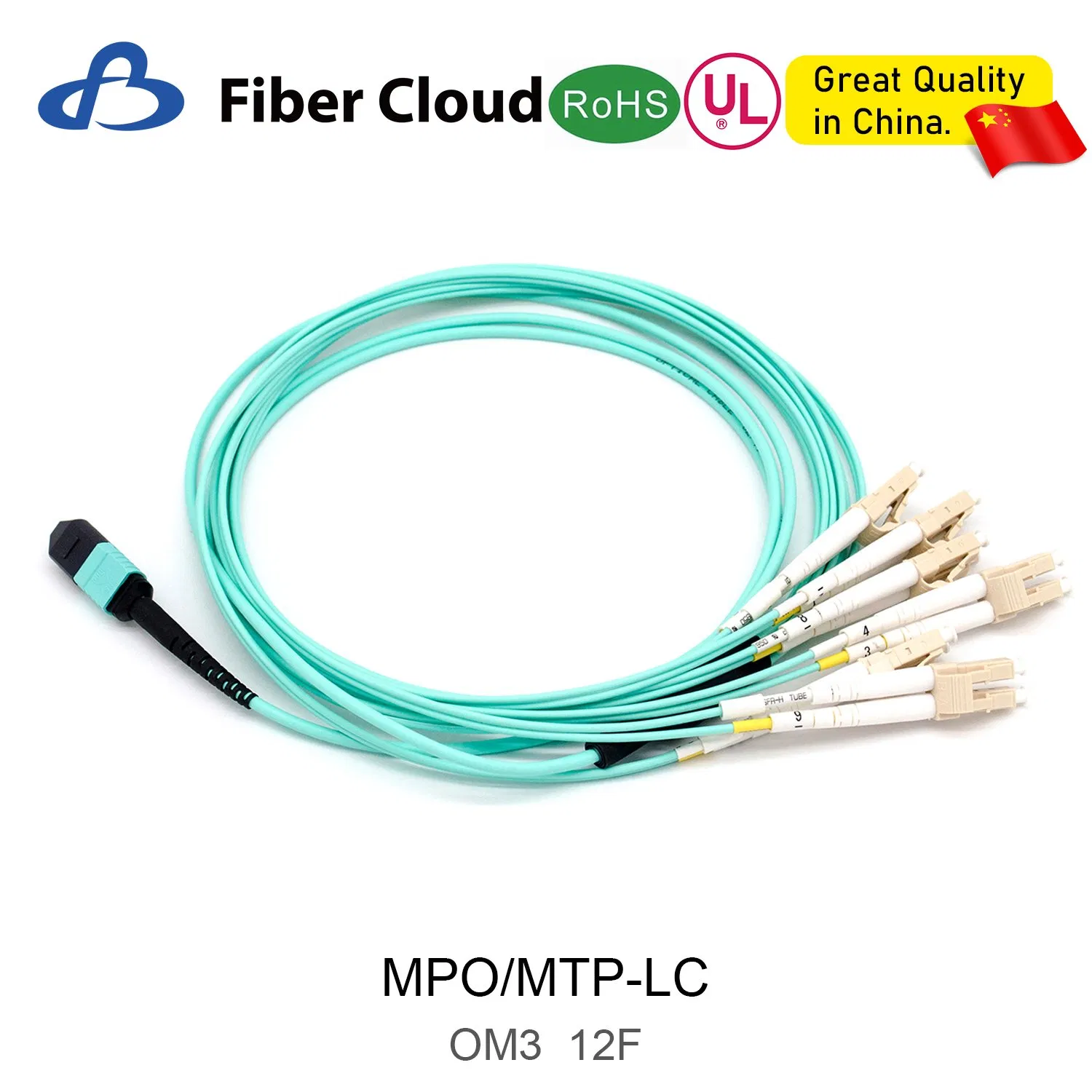

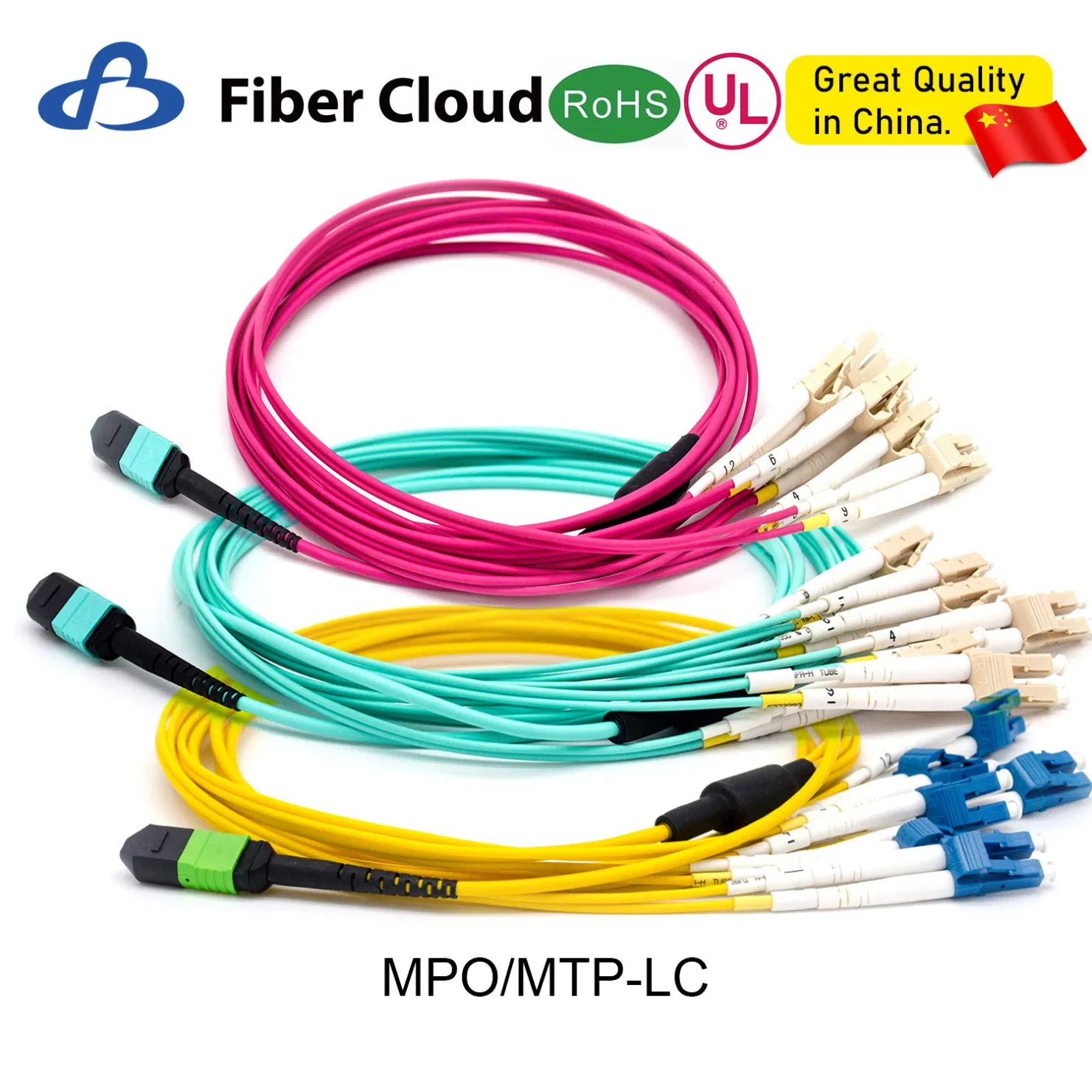

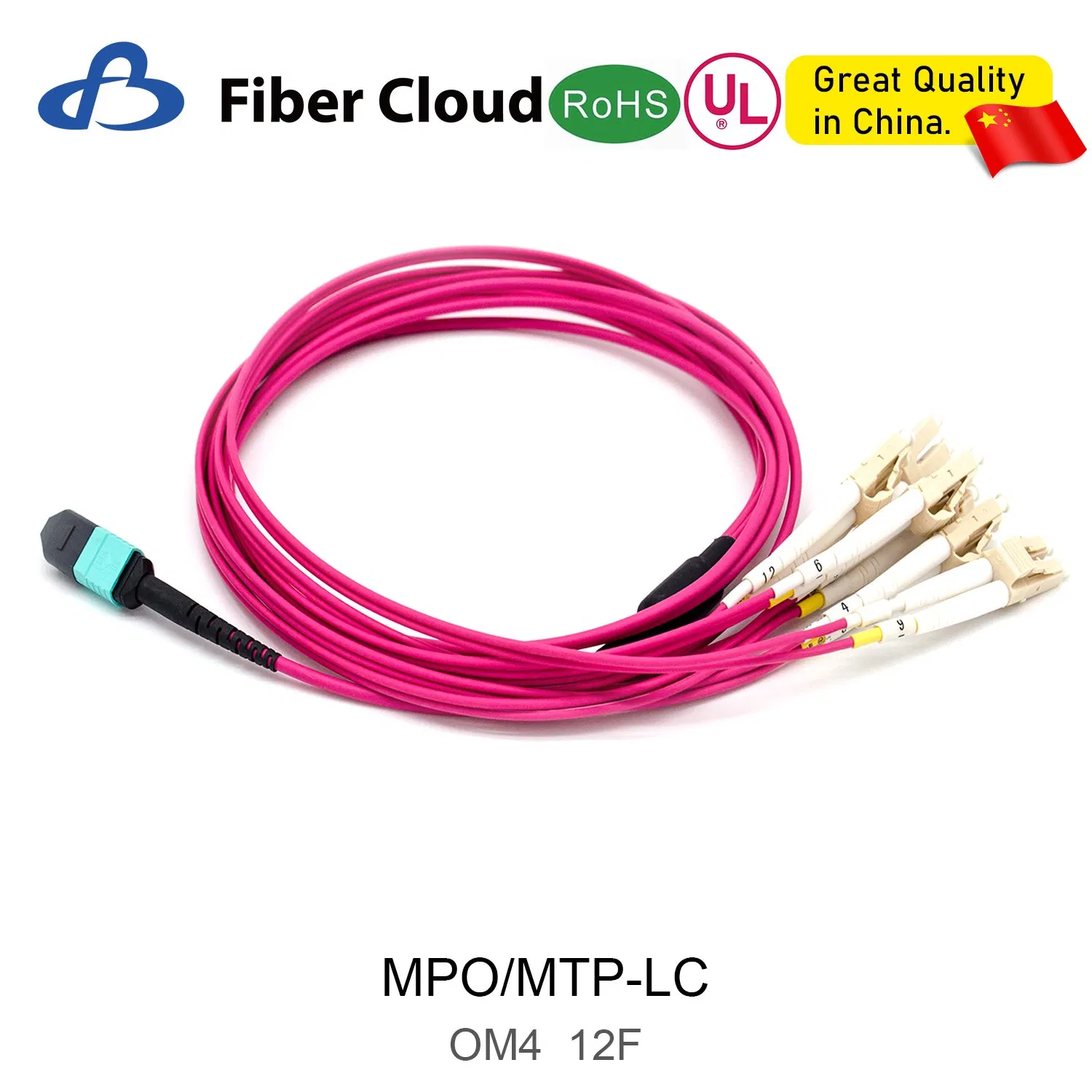

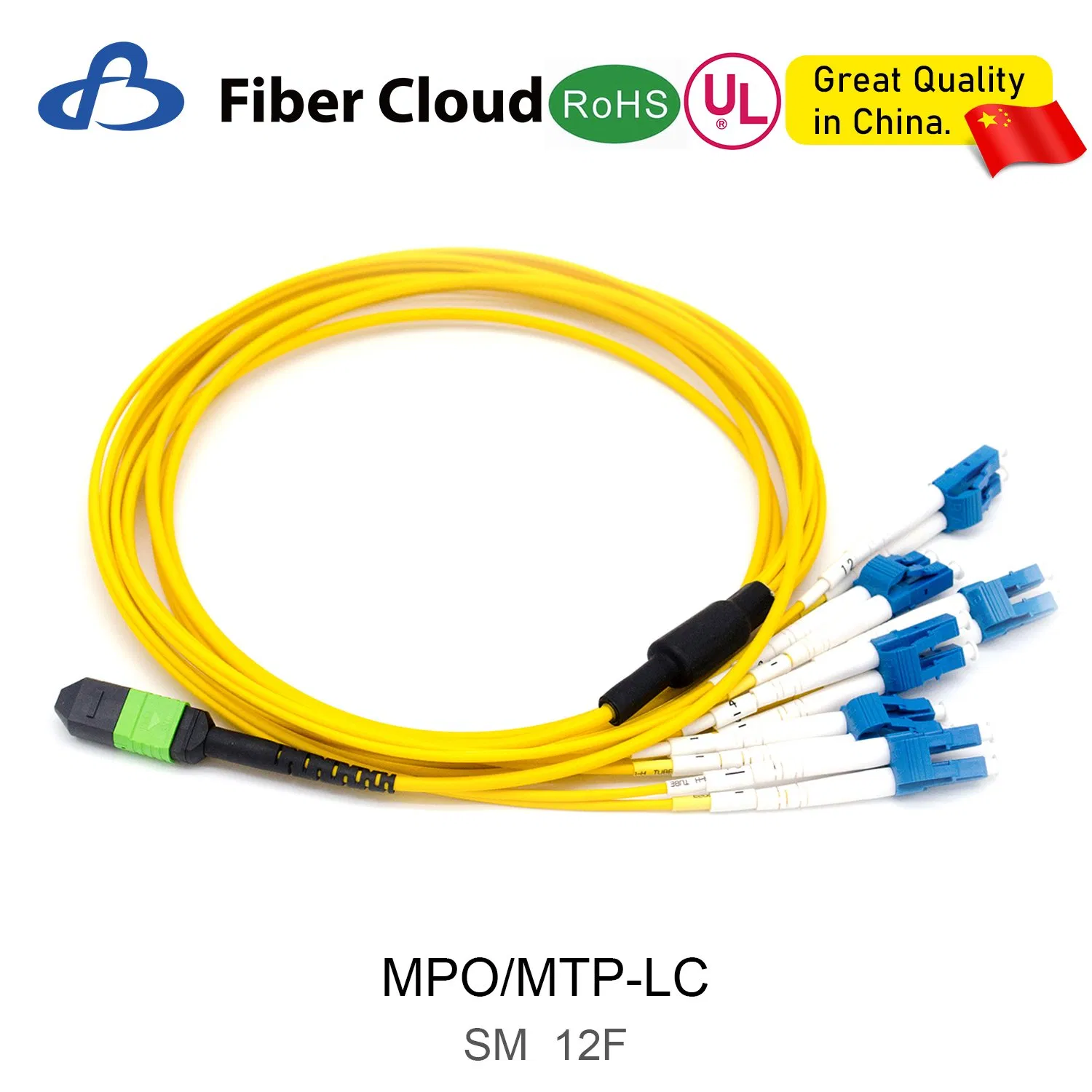

8/12/24core 2m-50m High Density PVC/LSZH UL Certification MPO-MPO Sm Om3 Om4 Om5 Trunk Cable Patch Cord Fiber Optic Jumper

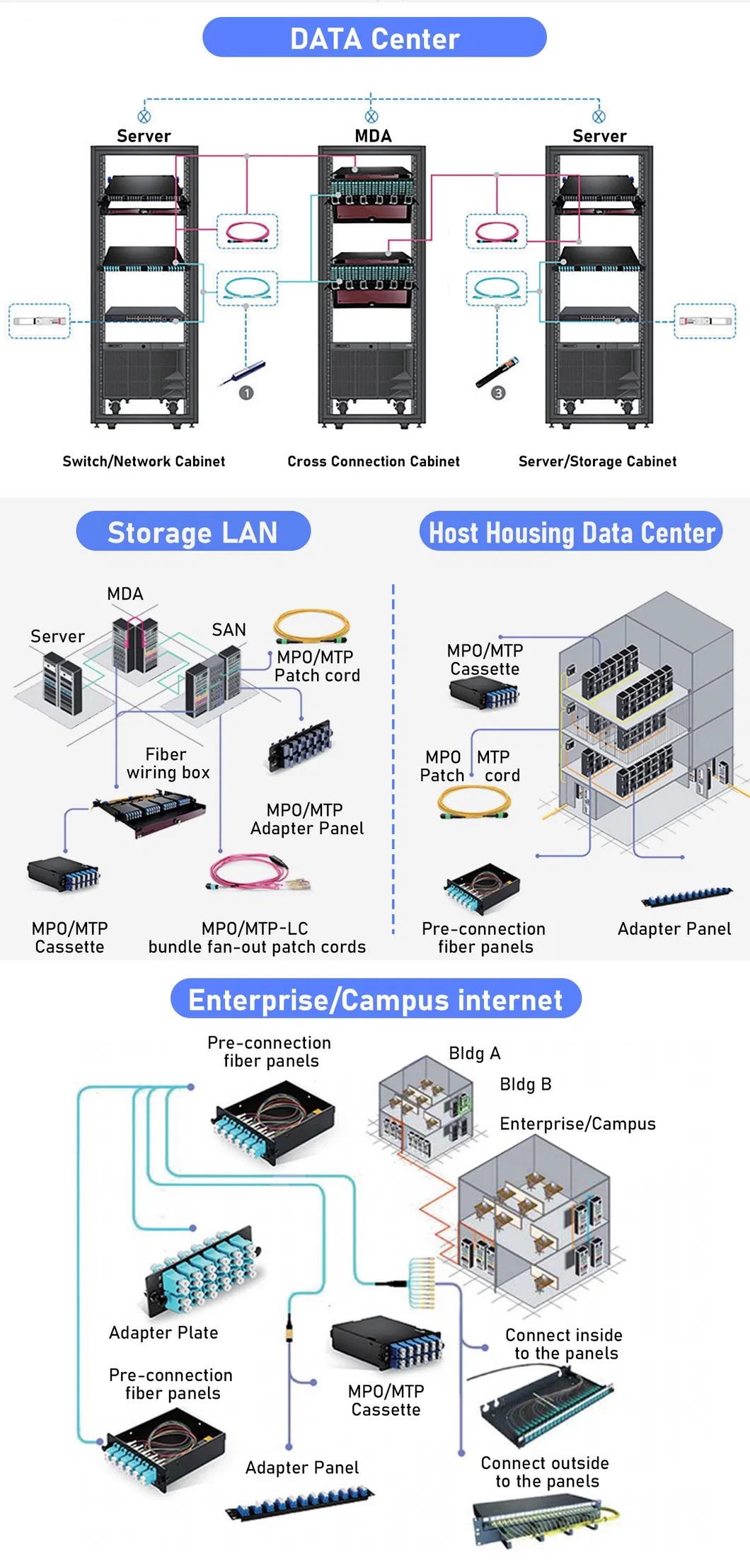

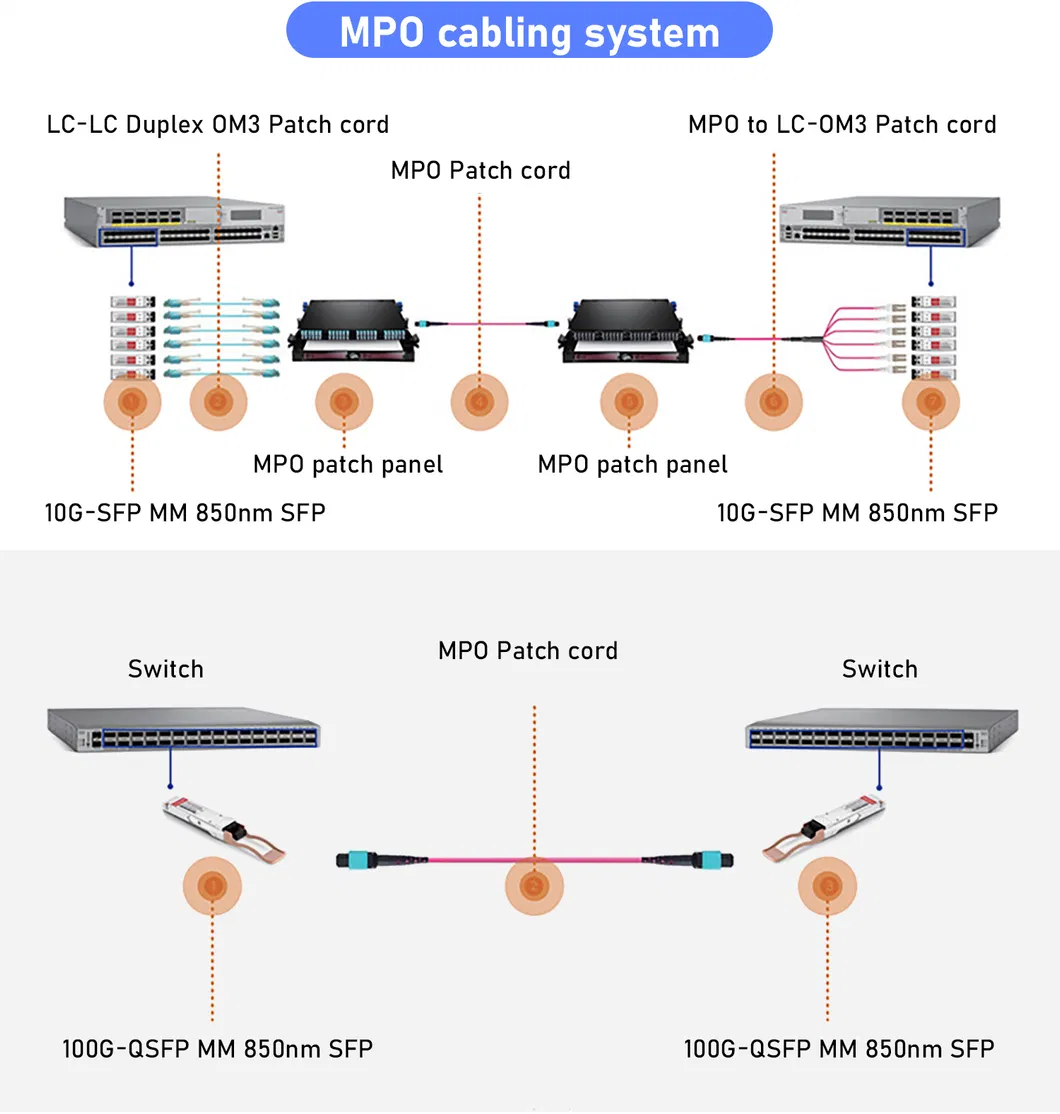

MTP/MPO-LC/SC pre-terminated sector optical fiber means that one end uses an MPO single-head 12-core or 24-core connector, and the other end uses an LC/SC connector. This product is mainly used in the pre-end module box to connect the jumper between the pre-end trunk optical cable and the equipment, making it modular and plug-and-play.

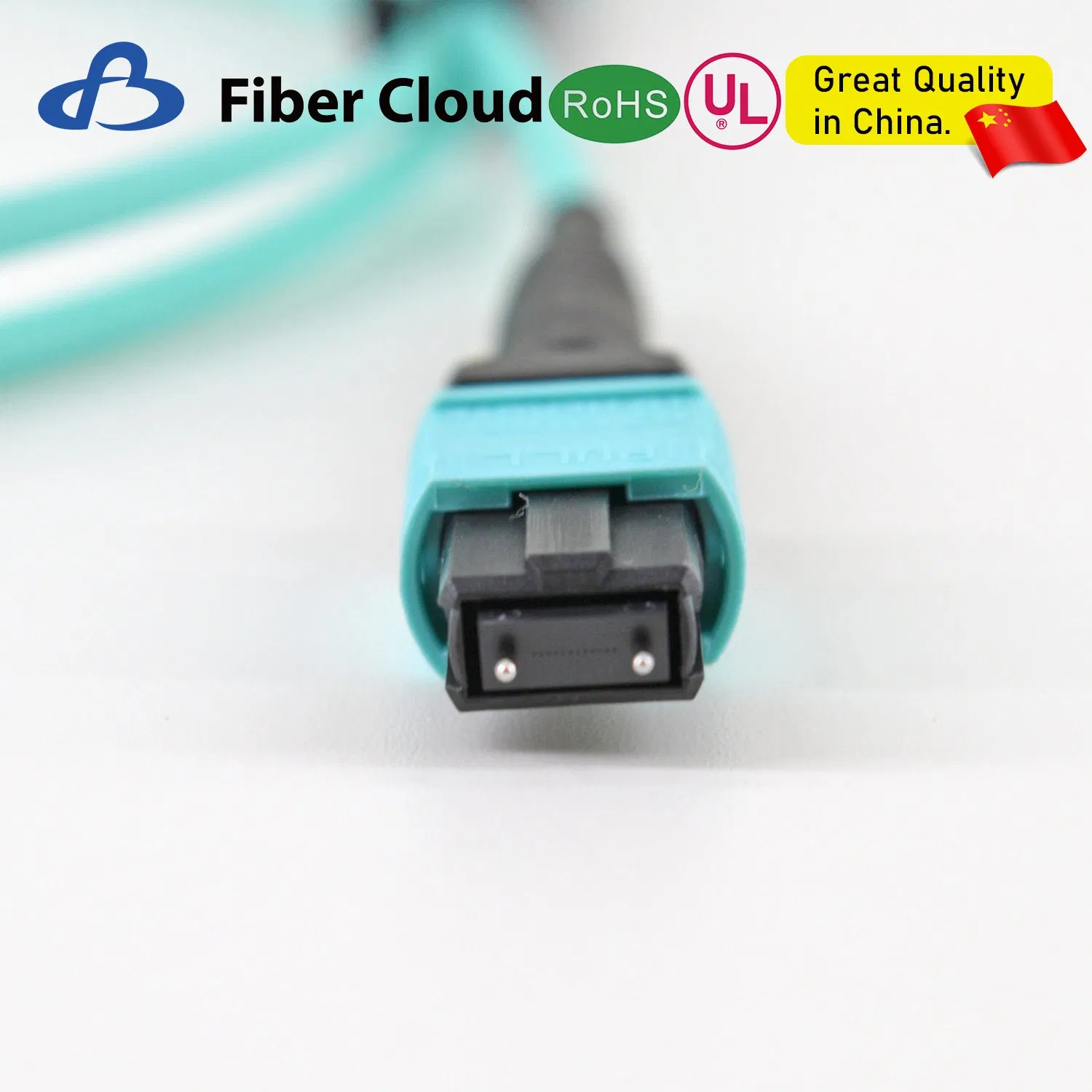

| Items | MPO (MTP) | LC |
|---|---|---|
| Connector Type | Female / Male | UPC / APC |
| Fiber Count | 4~72 Fibers | |
| Fiber Mode | Single mode: OS2 9/125µm | Multimode: OM4/OM3 50/125µm | |
| Insertion Loss | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50dB (UPC), ≥60dB (APC) | ≥30dB (MM) |
| Fiber Counts | Connector A | Connector B | Fiber Type | Jacket |
|---|---|---|---|---|
| 8, 12, 24 | SM/MM MPO Female/Male | LC, SC, FC, ST (UPC/APC) | G652D, G657A1/A2, OM1-OM4 | LSZH, OFNP, OFNR |
